Product Description
The STONEKRUSHER K3 - KONSTRUCTZ SERIES is a heavy-duty crawler-mounted jaw crusher designed for primary crushing of ores, stone, concrete, and construction waste. Powered by a Kubota D1105 diesel engine and equipped with a hydraulic-powered crawler system, the K3 delivers a production capacity of 5–10 US tons per hour with a 250 × 400 mm feed opening and a 20–60 mm crushed stone size range.
Equipment Highlights
This commercial-grade TYPHON equipment is calibrated to meet strict occupational standards. Built with heavy-wear high-tensile components, it offers unmatched reliability, direct operational integration, and long lifecycle value.
Kubota D1105 24.8 HP diesel engine
Hydraulic-powered crawler system
4,000 mm-class compact crawler design
50 L hydraulic oil tank capacity
| Standard Diesel Engine | Kubota D1105 |
| Rated Power | 18.5 kW / 24.8 HP |
| Engine Speed | 3,000 RPM |
| Fuel Tank Capacity | 50 L (13.2 gal) |
| Engine Oil Capacity | 4 L (1.1 gal) |
| Travel Speed | 0–4 km/h (0–2.5 mph) |
| Hydraulic Oil Tank Capacity | 50 L (#32/#46 Hydraulic Oil) (13.2 gal, ISO VG 32/46) |
Stone Crushers
TYPH-K3

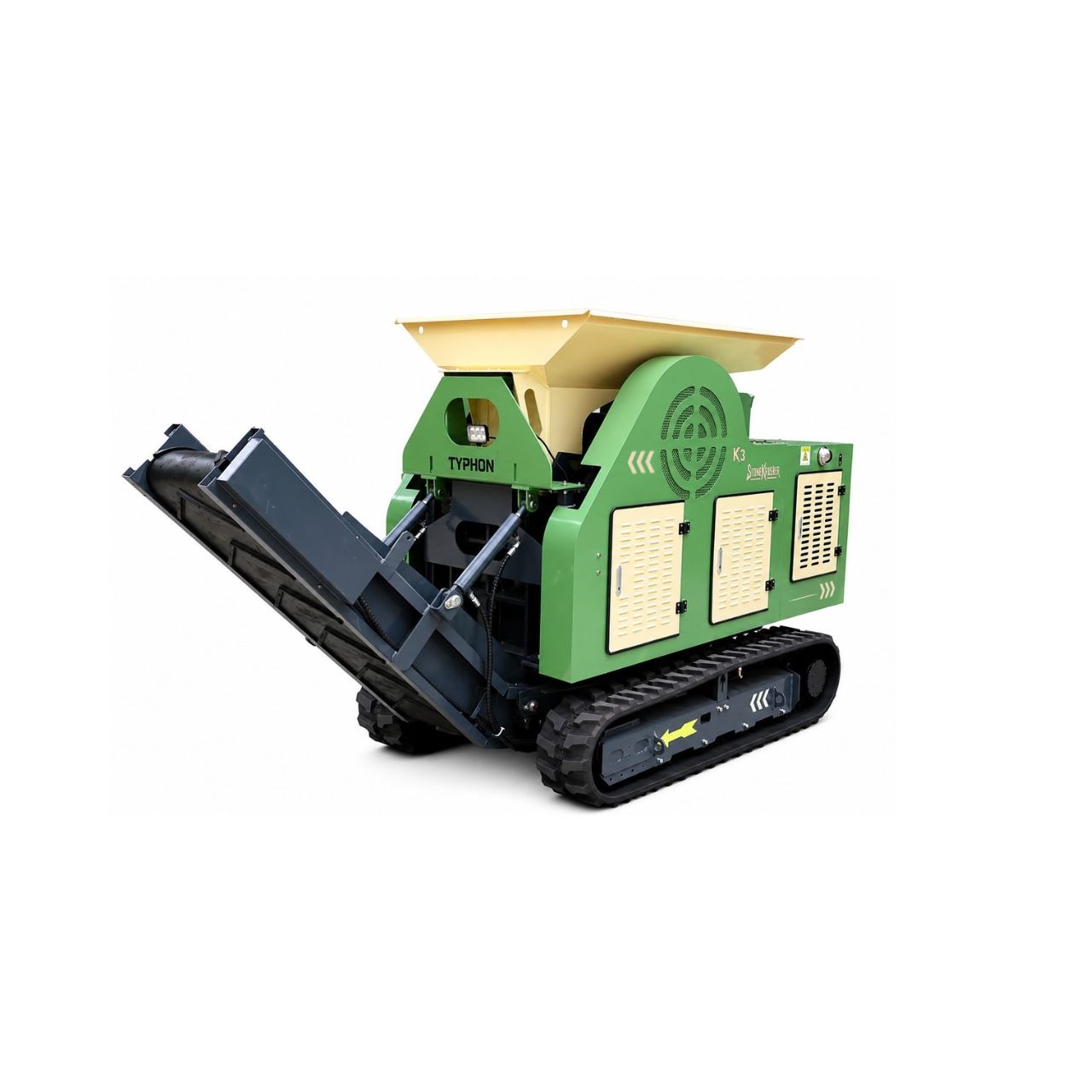

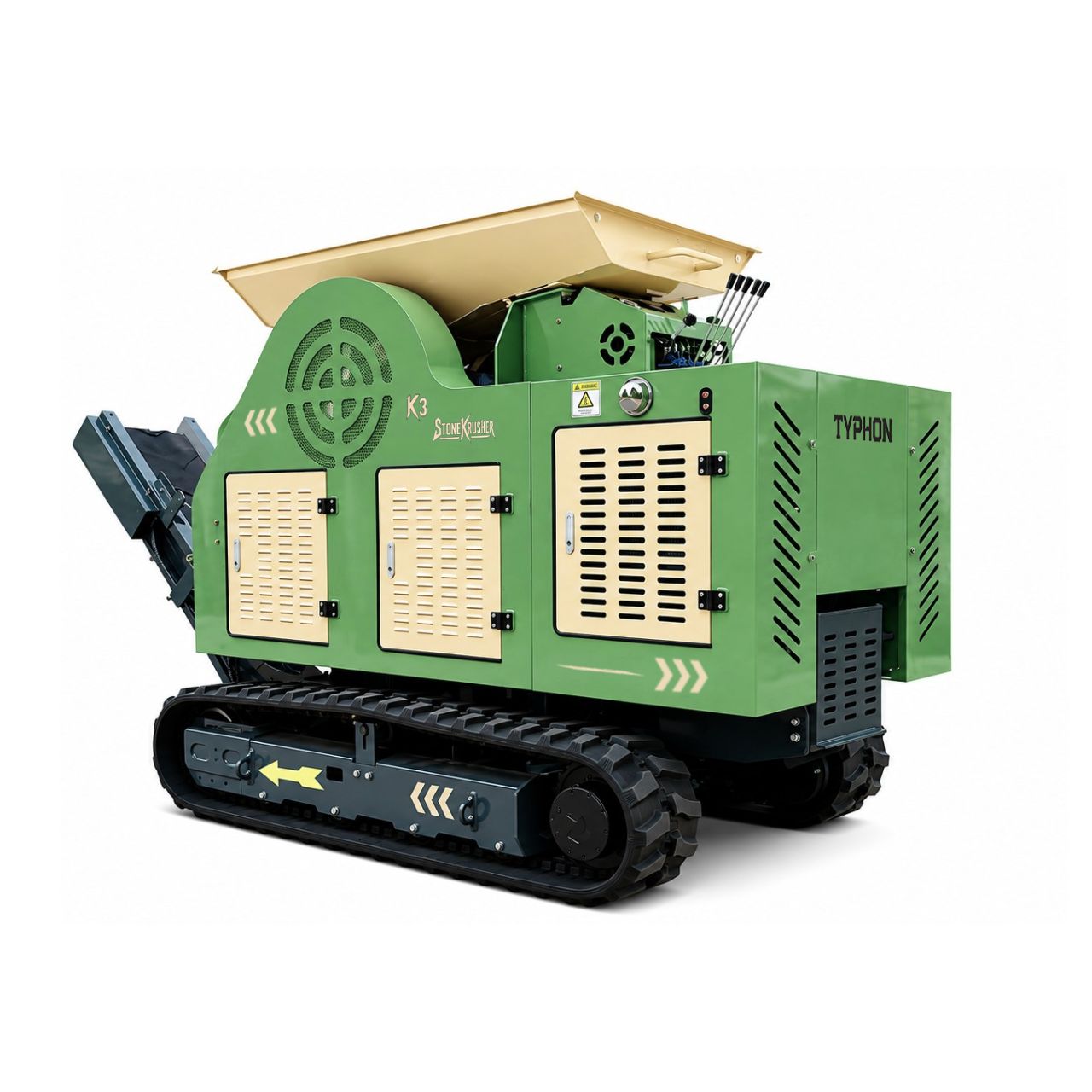

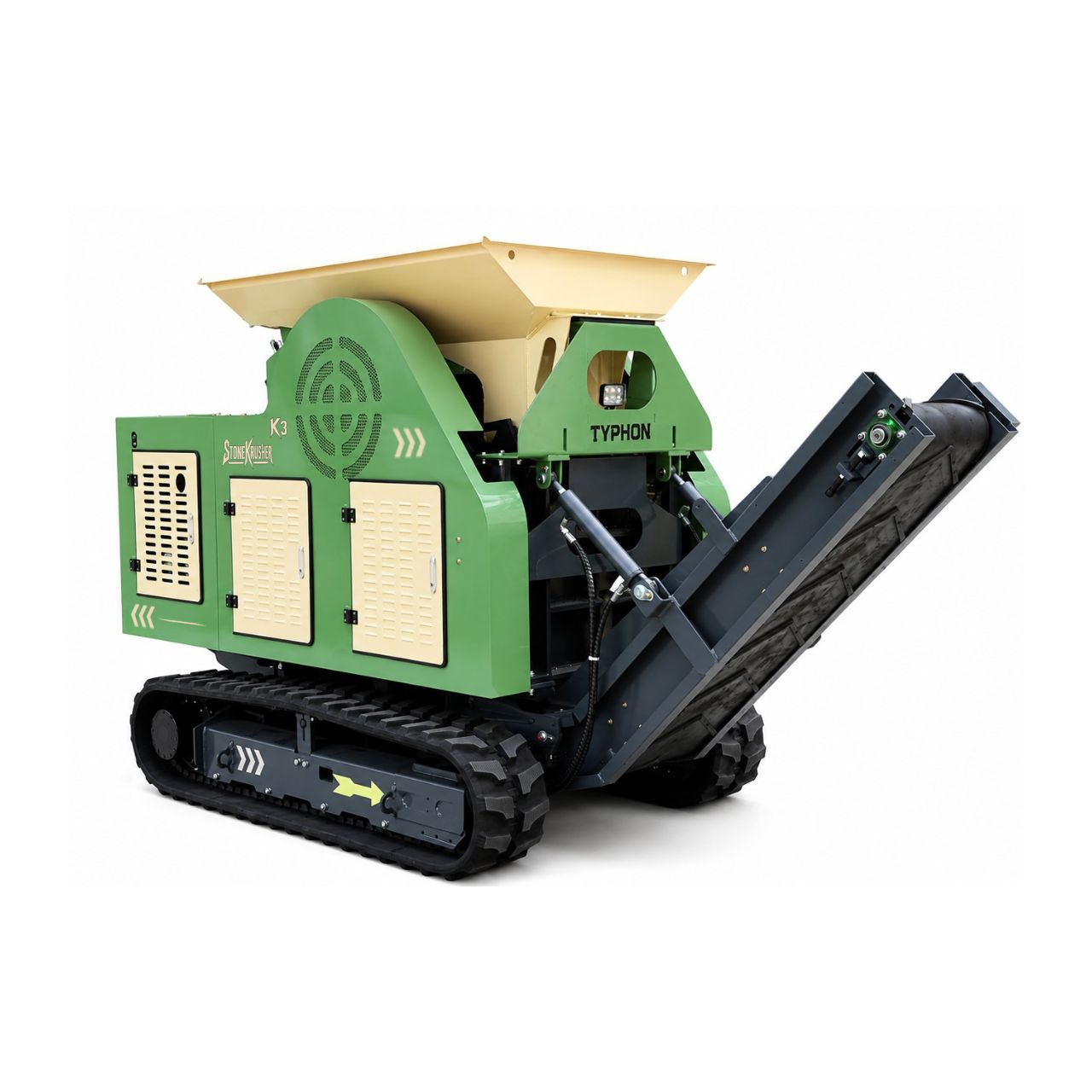

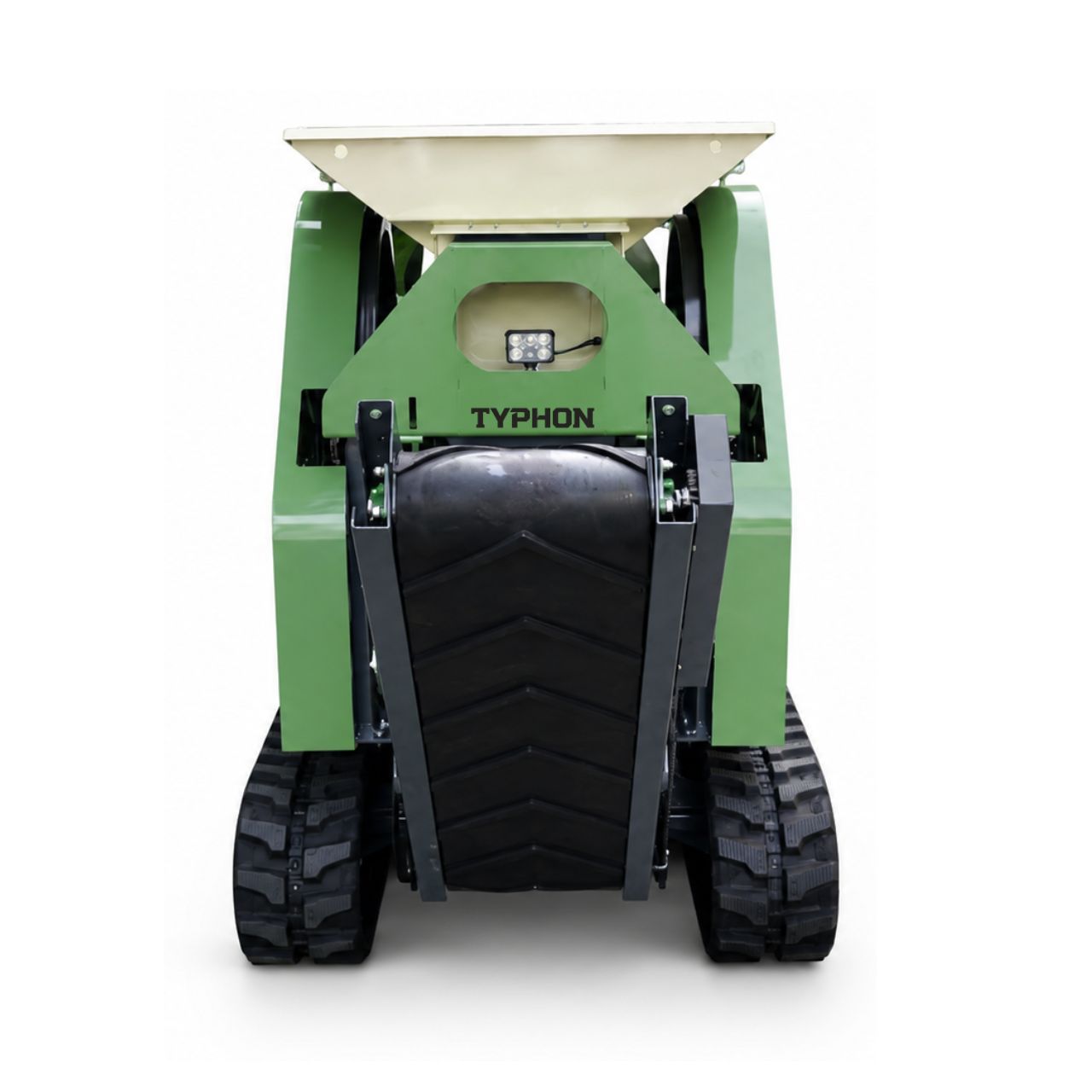

STONEKRUSHER K3 - KONSTRUCTZ SERIES (Tracked Crusher)
Available
Price
$25,160
The STONEKRUSHER K3 - KONSTRUCTZ SERIES is a heavy-duty crawler-mounted jaw crusher designed for primary crushing of ores, stone, concrete, and construction waste. Powered by a Kubota D1105 diesel engine and equipped with a hydraulic-powered crawler system, the K3 delivers a production capacity of 5...
Read More
