Product Description

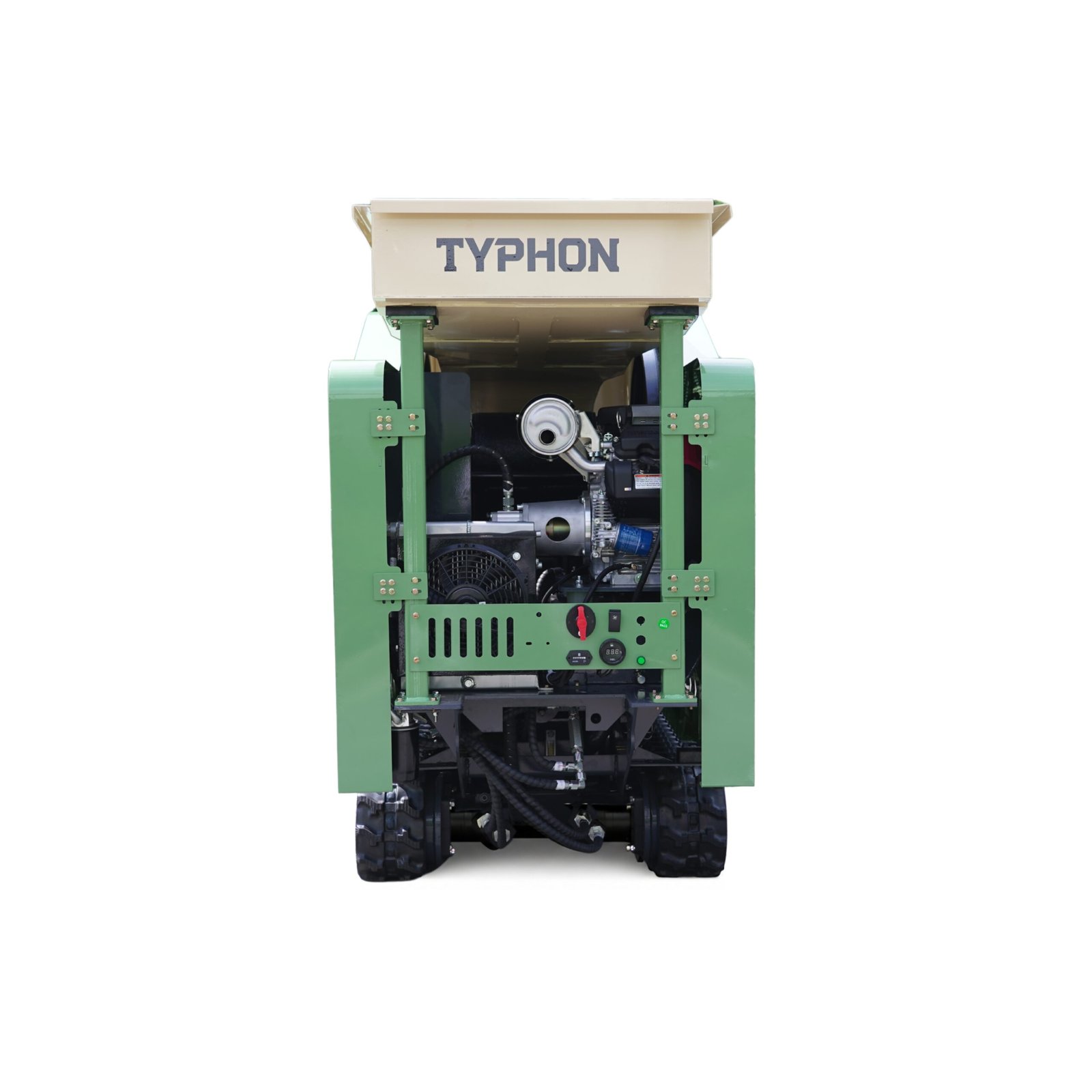

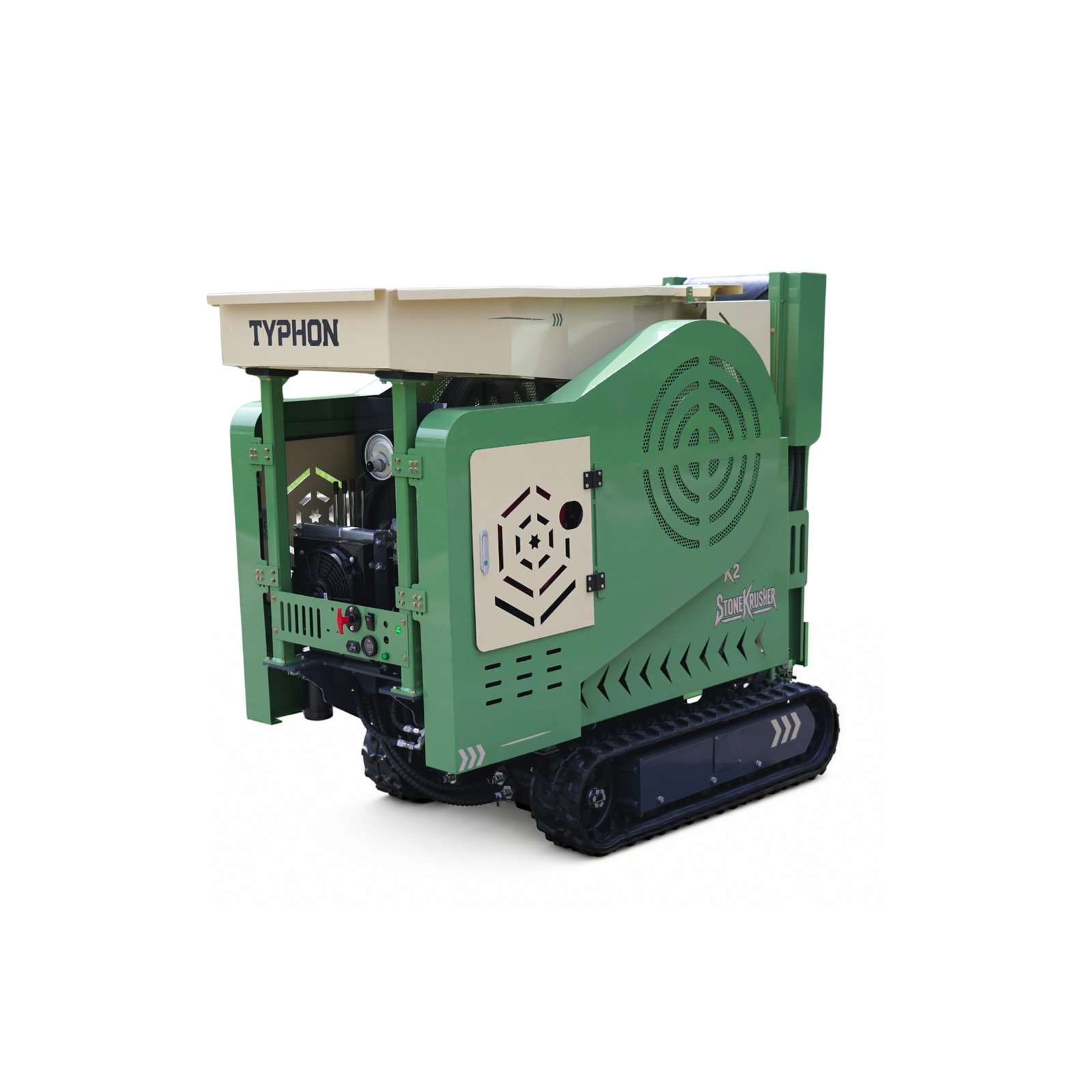

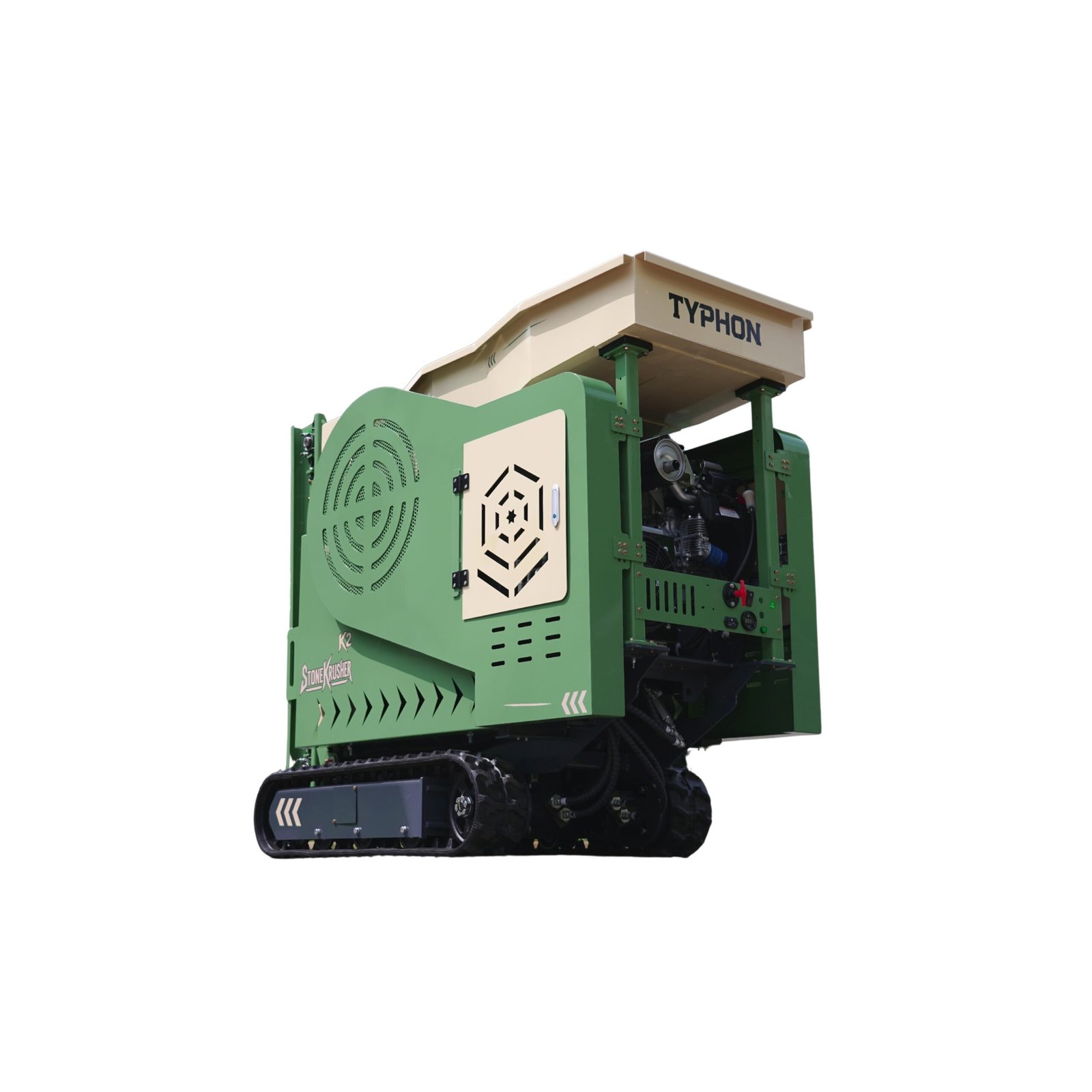

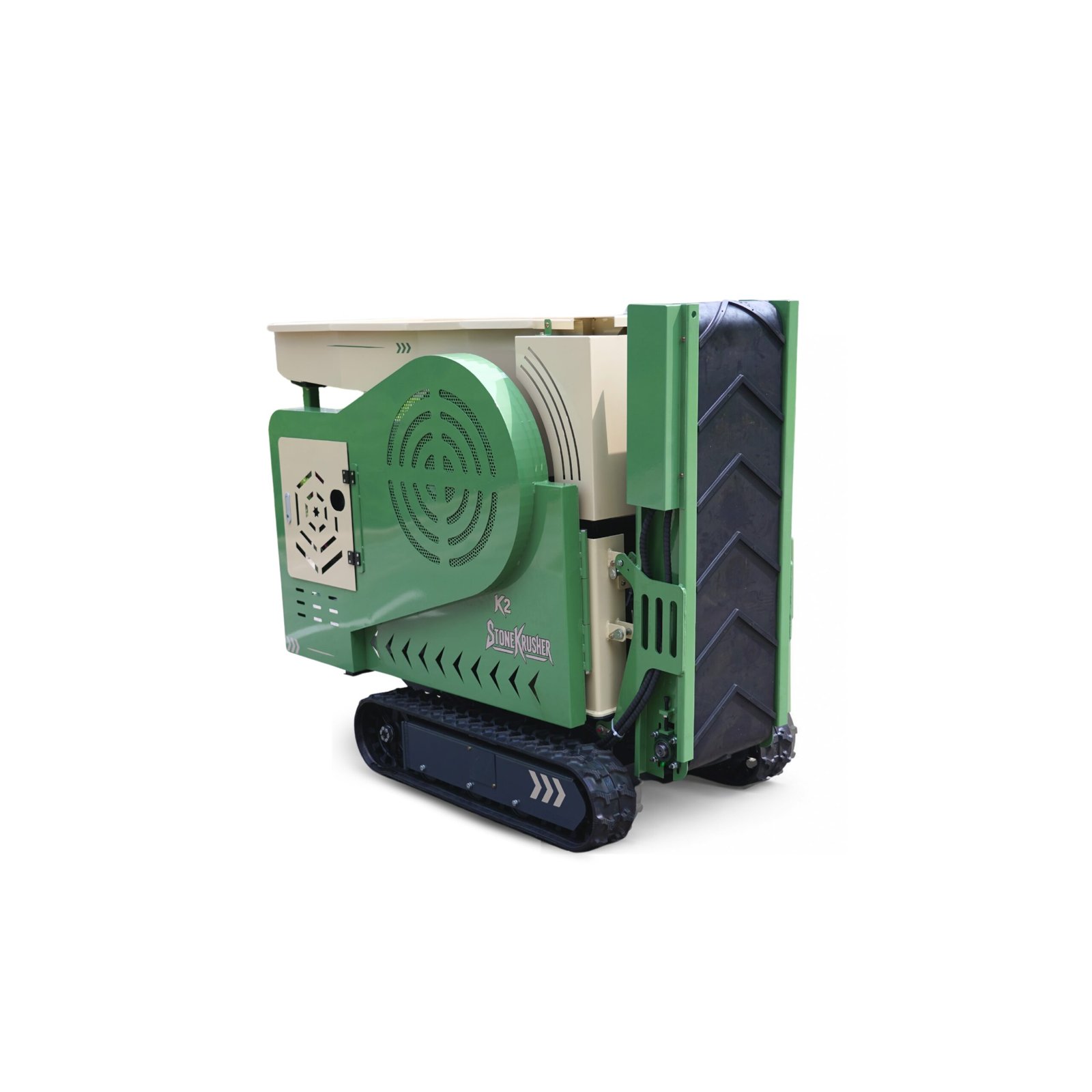

The STONEKRUSHER K2 - KONSTRUCTZ SERIES is a compact crawler-mounted stone crusher designed for efficient material processing in demanding environments. Powered by a Honda GX690 gasoline engine and equipped with a hydraulic-powered crawler system, the K2 delivers 2–5 tons per hour with a 220 × 350 mm feed opening and adjustable discharge height of 700–1,150 mm.
Equipment Highlights
This commercial-grade TYPHON equipment is calibrated to meet strict occupational standards. Built with heavy-wear high-tensile components, it offers unmatched reliability, direct operational integration, and long lifecycle value.
Honda GX690 22.1 HP gasoline engine
Hydraulic-powered crawler system
2–5 tons per hour production capacity
Adjustable 700–1,150 mm discharge height
Manual hydraulic valve operation
| Standard Gasoline Engine | Honda GX690 |
| Rated Power | 16.5 kW / 3,600 rpm (22.1 hp / 3,600 rpm) |
| Noise Level | ≤95 dB |
| Fuel Tank Capacity | 6.5 L (1.72 gal) |
| Engine Oil Capacity | 1.0 L (1.06 qt) |
| Hydraulic Oil Tank Capacity | 35 L of #32 / #46 Hydraulic Oil (9.25 gal) |
| Travel Method | Hydraulic-Powered Crawler |
Stone Crushers
TYPH-K2
STONEKRUSHER K2 - KONSTRUCTZ SERIES (Track)
Available
Price
$9,849
The STONEKRUSHER K2 - KONSTRUCTZ SERIES is a compact crawler-mounted stone crusher designed for efficient material processing in demanding environments. Powered by a Honda GX690 gasoline engine and equipped with a hydraulic-powered crawler system, the K2 delivers 2–5 tons per hour with a 220 × 350 m...
